How to Connect Arduino with PC


Arduino Uno is the most easiest way to start IC programming. Not only for simple programmes but also for complicated programmes are also can make using this. There are few types of Arduino boards


01.Arduino Mini


02.Arduino Mega

03. Arduino Uno

04.Arduino Micro


Among these boards, Arduino Uno is the most famous one and very easy to use it.

Follow this video for more information





First you have to buy arduino uno board with chip, it is ATMEGA 328.

Then go to arduino website and download arduino software and drivers.



You should download the correct software related to your operating system.

Now extract the zip file and open the folder,

Then click on arduino.exe and run the software.

NOW CONNECT ARDUINO UNO TO PC

Let's Configure the strings

01. Tools >Board>Arduino/Genuino Uno






02. Tools >port>COM3 ( The port as per your pc)


03. Tools >Programmer>AVRISP Mkll



Now your board is ready to use.

You can check it with example programme.


You need following things

01. Project Board
02.120 ohm Resister
03.LED
04. Jumper wires

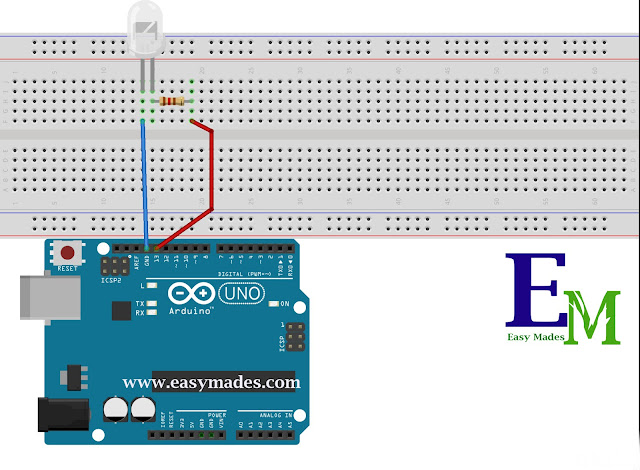

Follow the systematic.









Then,

Go to Files > Examples > Basics > Blink



Then Click Upload Button





It will take a time to upload and the LED will blink.
